500V 200KVAR 1.2UF Water Cooled Capacitor ALCON FP-5F-200

Name: 500V 200KVAR 12UF Water Cooled Capacitor ALCON FP5F200
Brand: GDHY
Price: 60 USD

Buy cheap 500V 200KVAR 1.2UF Water Cooled Capacitor ALCON FP-5F-200 product

Brand Name : GDHY

Model Number : C41501125KBB1201-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 20 PCS

Price : USD 60/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 PCS / MONTH

Delivery Time : 14 DAYS

Packaging Details : CARTON WITH FOAM BOX AND ANIT-CORRISON PROTECT.

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

MODEL NUMBER : C41501125KBB1201-01

CHARACTERISTICS : WATER COOLED, CONDUCTION COOLED, EXCELLENT HEAT DISSPATION.

CORE : IMPORTED COPPER FOIL

TERMINAL : COPPER

CERTIFICATION : ISO,SGS

OPERATION TEMP : -40℃～85℃

APACITANCE : 1.2μF

TOLERANCE : ±10%

RATED POWER : 200KVAR

RATED VOLTAGE : 500VAC

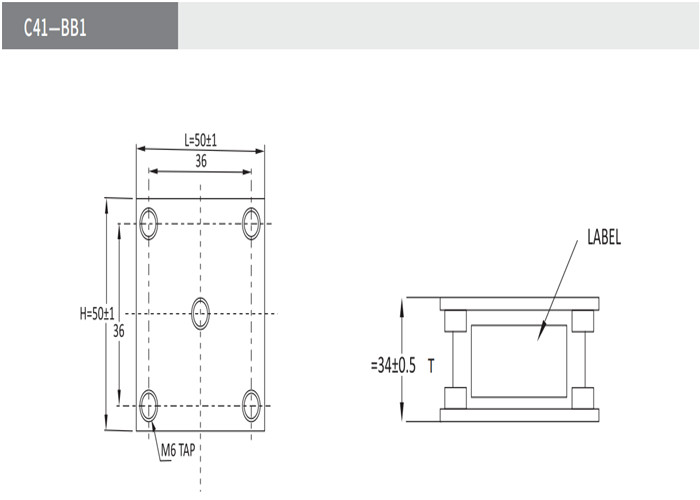

DIMENSION : 50*50*36MM

LIFE EXPECTANCY : 100000h at UN and 70℃,30000h at Urms

ADVANTAGE : KEEP LOW DF AND LONG LIFE EXPECTANCY

PRINTING : LASER MARKING

EXPERIENCE : OVER 22 YEARS

INSTALLATION : THROUGH HOLE

FREQUENCY : 105KHZ

MAX Irms : 400A

APPLICATION : Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Contact Now

C41-BB1 1.2UF/500V/200KVAR (ALCON FP-5F-200)WATER COOLING CAPACITOR WATER COOLING CAPACITOR POWER CAPACITOR

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	1.32μF
Power Range	300kVar
Rated Voltage	600VAC
Capacity Tolerance	±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Specification download: C41-BB1.pdf

Application

Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Feature

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt

● Can bear large current, excellent heat dissipation

Product Picture
