0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Name: 001uF 1250VDC Metallized Polypropylene Film Foil Capacitor
Brand: GDHY
Price: 0.05 USD

Buy cheap 0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor product

Brand Name : GDHY

Model Number : CBB81-103J1250V-15RN-1R

Certification : SGS,ISO

Place of Origin : Guangzhou, China

MOQ : 10KPCS

Price : 0.05 USD/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 KPCS

Delivery Time : 14 DAYS

Packaging Details : plastic bag and carton

Place Of Origin : Guangzhou, China

Supplier Type : Original Manufacturer

Classification : Polypropylene Film Capacitor

Model number : T1031250-D-15-1R

material : Metallized polypropylene film

Operating Temperature Range : -40℃～85℃

Capacitance : 0.01UF

Capacity Tolerance : ±5%

Rated DC Voltage : 1250VDC

Pitch : 15±1.5mm

height : 7.5mm

width : 18mm

thickness : 12mm

Contact Now

0.01uF 1250VDC, High Voltage Metallized Polypropylene Film/Foil Capacitor

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Technical Parameter

Reference Standards	GB/T 14579(IEC 60384-17)
Climate Category	40/085/21
Operating Temperature Range	-40°℃~85°℃
Capacitance range	0.001uF～0.1uF
Rated Voltage	800VDC,1000VDC,1200VDC,1600VDC,2000VDC
Capacity Tolerance	士5%(J);土10%(K);±20%(M)
Withstand voltage	Vt-t1.75UN 5S (at20土5°℃)
Insulation Resistance	≥50000MQ(at 20°℃ 1Min)

Specification download: CBB81.pdf

Application

Display, Color TV Reverse Circuit
Suitable for High Pulse and High Current Circuits

Features

Metallized polypropylene film foil dielectric
Non-inductive winding structure
Flame retardant epoxy resin powder encapsulation
Small tgo, low internal temperature rise
Negative electricity capacity temperature ratio

Product picture

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

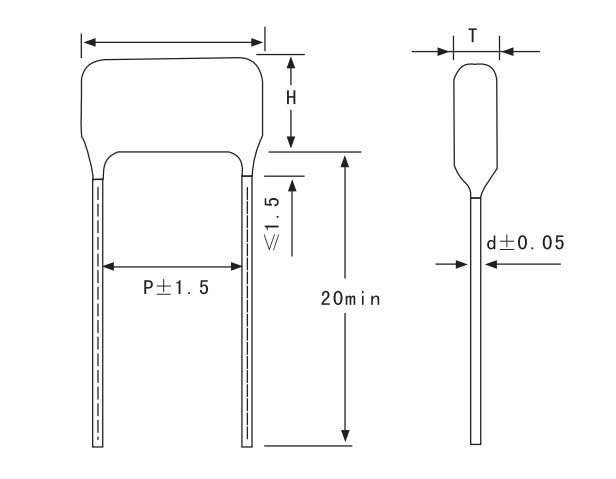

Product shape

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Production

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Workshop& Equipment

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Packing method

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Certificate

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor

Exhibition

0.01uF 1250VDC Metallized Polypropylene Film Foil Capacitor
